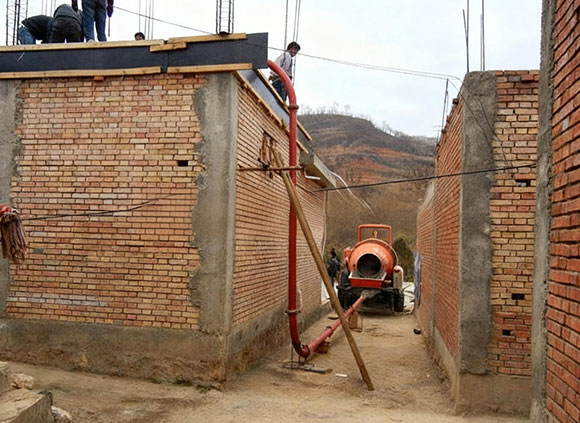

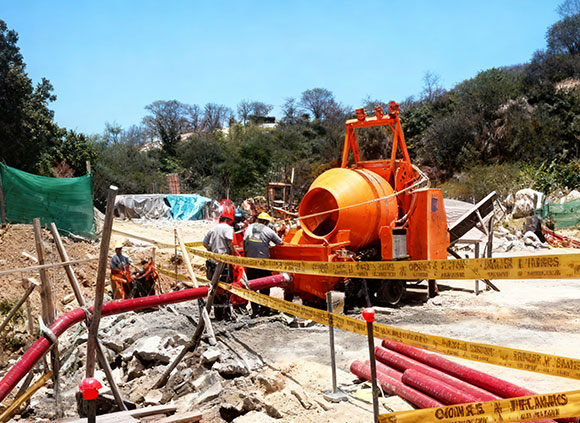

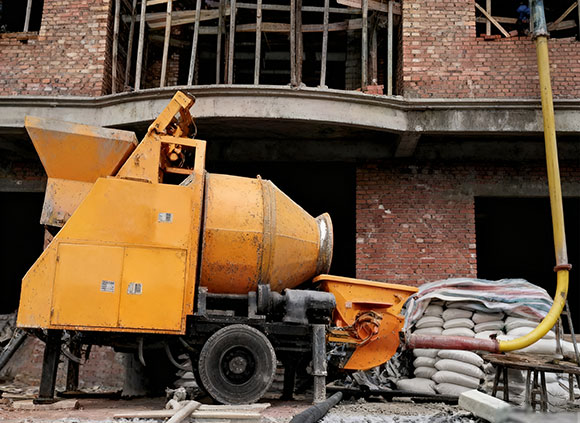

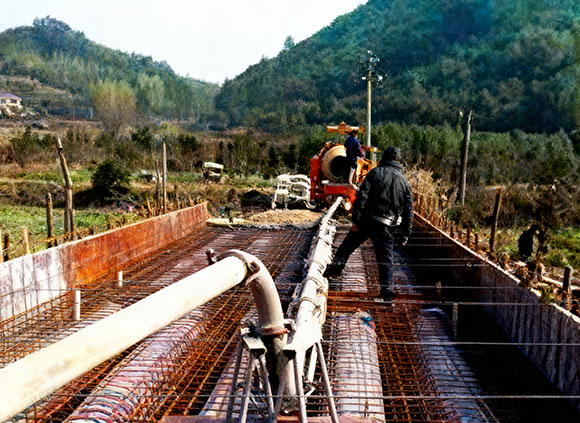

The Mobile Concrete Mixer Pump is an all-in-one solution that combines mixing and pumping in a single, powerful machine. It enables continuous on-site concrete production and placement, delivering significant productivity gains for a wide range of projects. Ideal for building construction, roads, water conservancy, and rural development.
Theoretical Output
Mixer Capacity
The All-in-One Concrete Mixer Pump: Revolutionize On-Site Efficiency

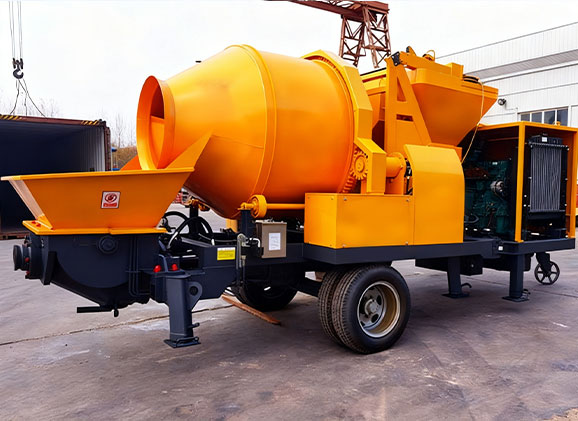

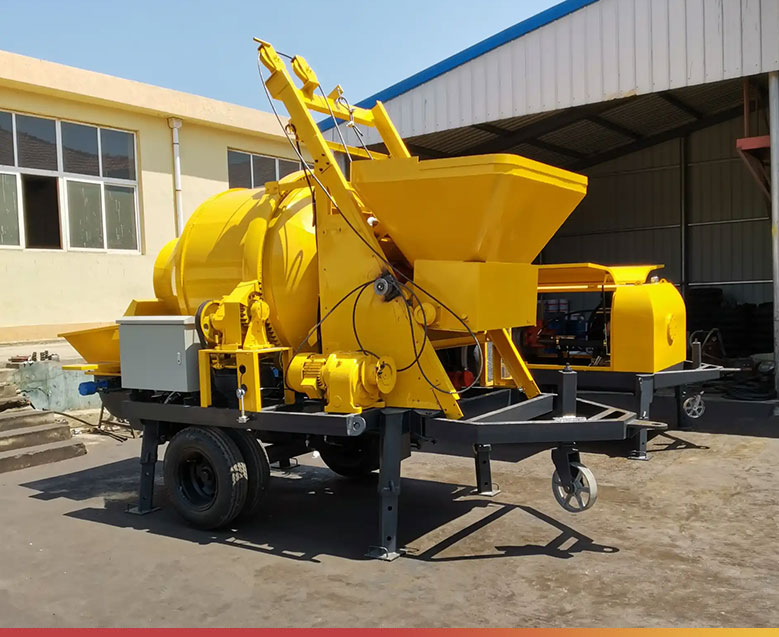

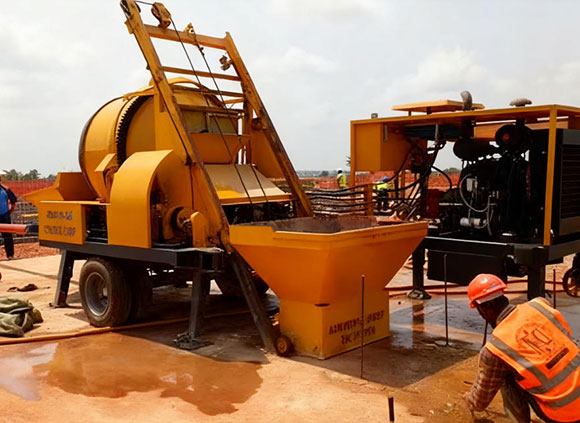

Our trailer-mounted concrete mixer pump combines mixing and pumping in one mobile unit for continuous on-site operation. It delivers 4-6x higher productivity, excellent mobility for confined sites, and simple automated control – the ultimate solution for maximum efficiency and flexibility in construction.
| Project | YG-30 | YG-40 | Project | YG-30 | YG-40 |
| Concrete transfer pump model | JBS30-10-37 | JBS40-12-45 | Concrete conveying cylinder diameter x stroke | Ф140×1000mm | Ф180×1000mm |
| Theoretical concrete conveying capacity | 35 m³/h | 45 m³/h | Concrete main cylinder diameter × stroke | Ф80×1000mm | Ф100×1000mm |
| Theoretical concrete mixer mixing amount | 15-20 m³/h | 15-20 m³/h | Control mode | Remote control | Remote control |

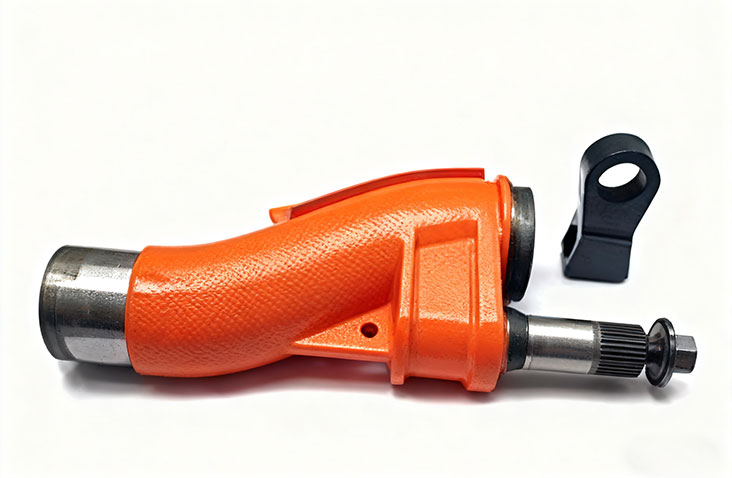

| Concrete mixer feed capacity | 650 L | 650 L | Distribution valve form | S-pipe valve | S-pipe valve |
| Discharge capacity of concrete mixer | 450 L | 450 L | Hydraulic oil circuit form | Open loop | Open loop |

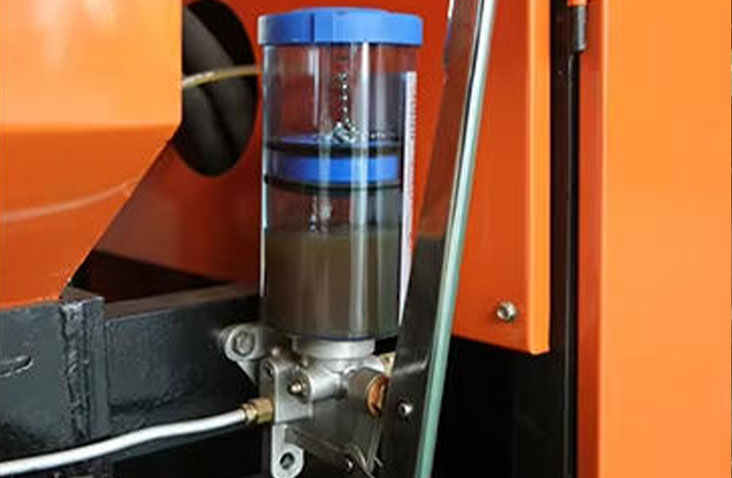

| Concrete transfer pump motor power | 37 kw | 45 kw | Lubrication system | Automatic lubrication | Automatic lubrication |
| Stirring motor power | 5.5 kw | 5.5 kw | Pumping system oil pressure | 28 MPa | 32 MPa |
| Boost motor power | 5 kw | 4.5 kw | Mixing system oil pressure | 6-8 MPa | 8 MPa |
| Water pump motor power | 0.55 kw | 0.55 kw | Hydraulic tank volume | 400 L | 450 L |
| Motor speed | 1440 r/min | 1440 r/min | Allow concrete aggregate size | ≤30mm | ≤40mm |
| Concrete transfer pressure | 10 MPa | 12 MPa | Discharge port inside diameter | Ф100 mm | Ф150mm |
| Theoretical vertical height of concrete conveying | 150 m | 150 m | Equipment dimensions: length × width × height | 4500×2200×2300 mm | 4500×2200×2300 mm |
| Theoretical concrete conveying horizontal distance | 500 m | 600 m | Equipment weight | 4500 kg | 5000 kg |
FEA-optimized for high-strength and durability in demanding applications.

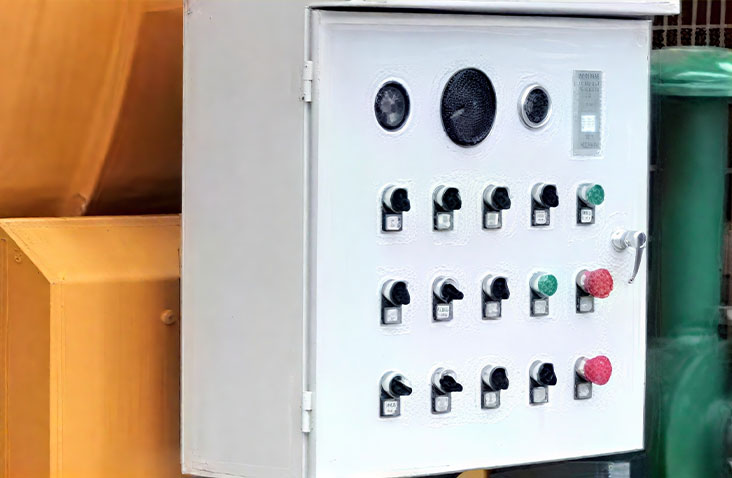

Simple, reliable operation with wired remote for convenience.
Ensures critical component protection and extends service life.
Ultra-hard materials for extended life and reduced operating costs.
Simplified system for enhanced reliability and easier maintenance.

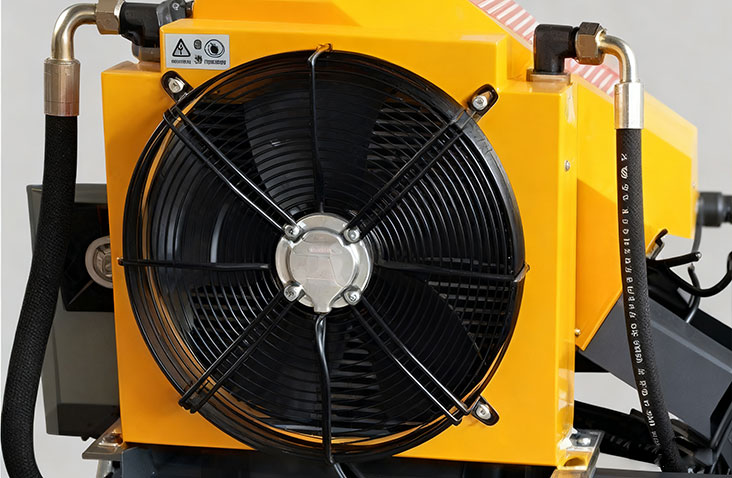

Maintains optimal temperature for consistent performance under heavy loads.
Engineered for Maximum Uptime
Our patented dual-circuit hydraulics and wear-resistant technology are built for one purpose: to keep your project running smoothly, minimizing costly downtime.
Expert Support, Always On Call
From installation training to rapid spare parts delivery, our global support team is committed to maximizing your investment and operational efficiency, 24/7.
Solutions Born from Experience
We don‘t just sell pumps; we design solutions. Our deep industry knowledge allows us to tailor equipment to your specific site challenges.
Proven Success Worldwide
Join thousands of satisfied contractors who have completed their projects on time and on budget with our reliable equipment. [View Case Studies].
